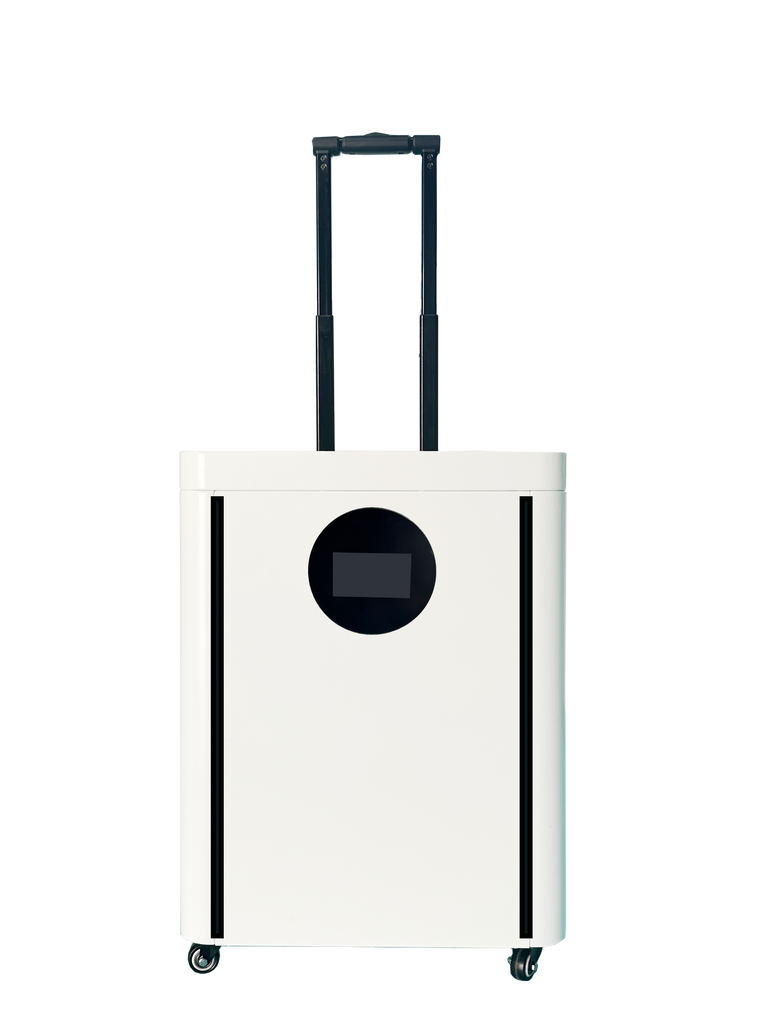

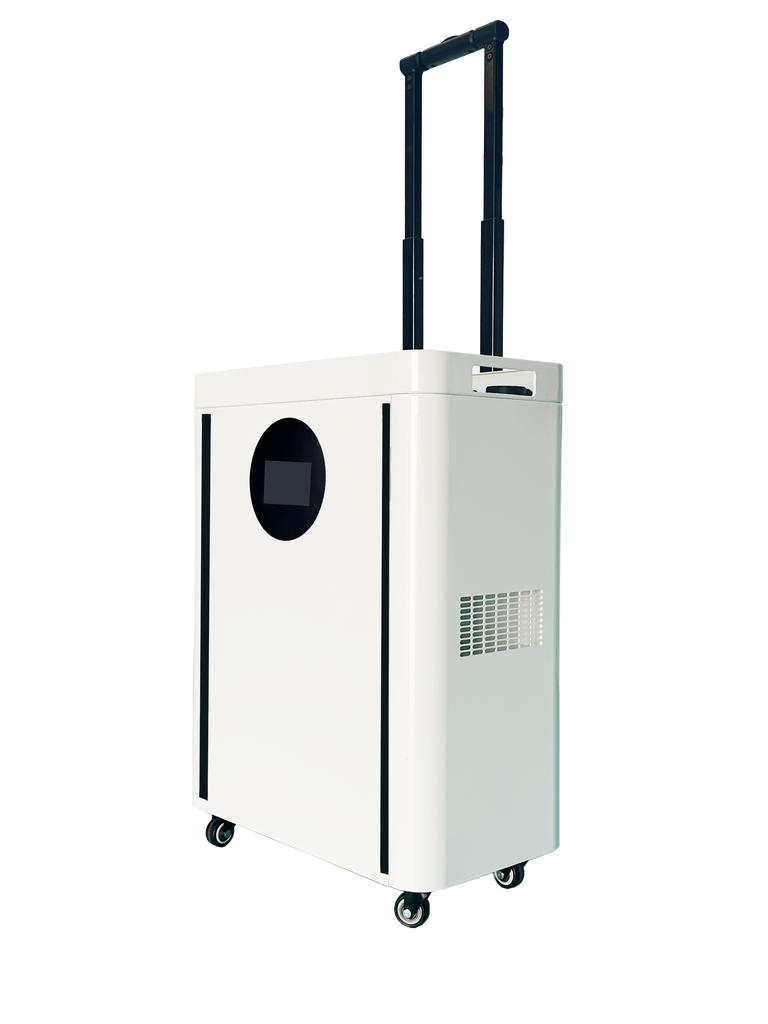

Pull-rod Energy Storage Power Supply
customers are viewing this product
1. self-sufficiency of household energy;
2. standby of small commercial places;
3. RV, yacht and outdoor work, etc.
| Product Model | PES-5.12KWh/5.5KW (inverter) | |
| Battery Type | LiFePO4 | |
| Rated Voltage of Battery | 51.2V | |
| Rated Capacity of Battery | 5120Wh | |
| Standard Charging Voltage of Battery | 58.4V | |
| Floatcharging Voltoge | 57.6V | |
| Discharge Cut-off Voltage | 40V | |
| Standard Charging Current | 50A | |
| Maximum Charging Current | 100A | |
| Maximum Discharge Current | 100A | |
| Mains Input | 220V/50Hz | |
| MAX AC Charge Current | 50A | |
| Maximum Input Power of AC Charging Gun | 3500W | |
| Max PV Input | 6200W | |
| MPPT Tracking Range | 60～500VDC | |
| PV Best Operating Range | 300～400VDC | |
| PV Maximum Input Current | 18A | |
| PV Max Charge Current | 100A | |
| AC Output Voltage | 220V | |
| AC Output Frequency | 50HZ | |
| AC Output Waveform | pure sine wave | |
| AC Output Power | 5500W（Peak 11000VA） | |
| Cigarette Lighter Output | 12V/10A | |
| USB Output | QC18W*2 PD36W*2 | |
| DC48V Output | 50A（It can be used as DC charging port and battery expansion.） | |
| Operating Temperature Range | -10℃～65℃ | |
| Storage Temperature Range | -15℃～60℃ | |
| Relative Humidity | 5%～95%RH（no condensation） | |
| Altitude | ＜1000m, derate above 1000m, up to 4000m maximum, with reference to IEC 62040. | |
| Operating Environment Humidity | 20%～95% Condensation-free | |
| Noise | ≤50db | |
