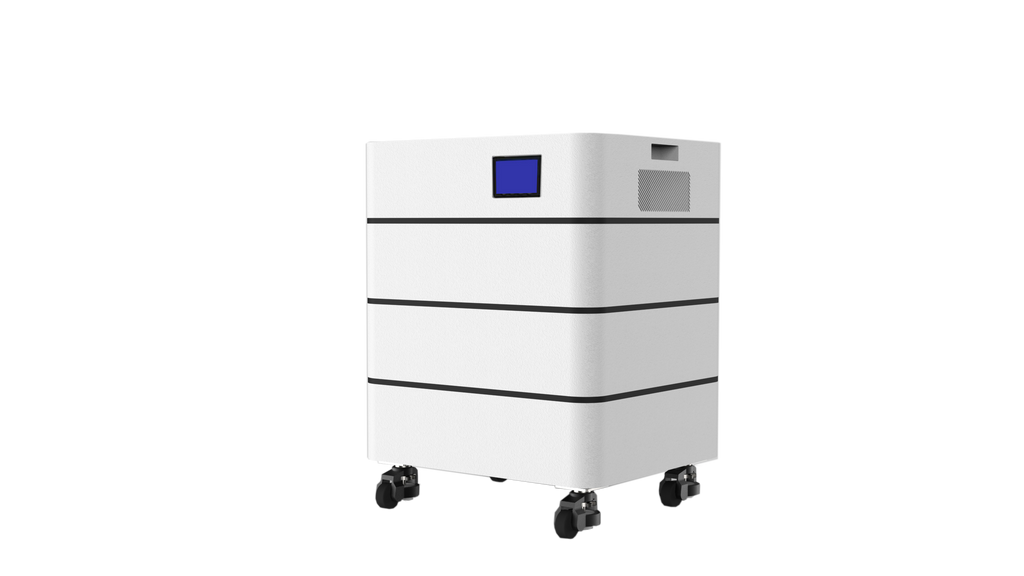

Stacked Energy Storage System-SES-5KW48100-3
customers are viewing this product
1. household energy storage;
2. electricity consumption in shopping malls/industrial areas;
3. small base stations, etc.
| Model | SES-5KW48100-3 | |||
| Battery Module | ||||
| Lithium Battery Technology | LiFePO4 | |||
| Battery Energy | 10240Wh | |||
| Number of Battery Modules | 2 | |||
| Rated Voltage | 51.2V | |||
| Communication Method | RS485/RS232 | |||
| Inverter Module | ||||
| Input System | L+N+PE | |||
| Rated Input Voltage | 220V/230V/240V | |||
| Voltage Range | 90V~280V±3V(normal mode)/170V~280V±3V(UPS Mode) | |||
| Frequency Range | 50Hz/60Hz (self-adaption）±0.1% | |||
| Output Rated Power | 5000W | |||
| Output Peak Power | 10000W | |||
| Waveform | sine wave | |||
| Basic Parameter | ||||
| Displayscreen | LCD | |||
| Altitude | ≤2000m | |||
| IP Grade | IP65 | |||
| Working Temperature | -20℃~55℃ | |||
| Relative Humidity | ≤95% frost-free | |||
| Cycle Life | 6000 time | |||
| Size (length*width*height) | 610*600*510mm | |||
| Quality Assurance | 3 years | |||
| Installation Mode | floor-standing | |||
